Showing1-15 of 34 items
15 30 60 per page
Sort By:

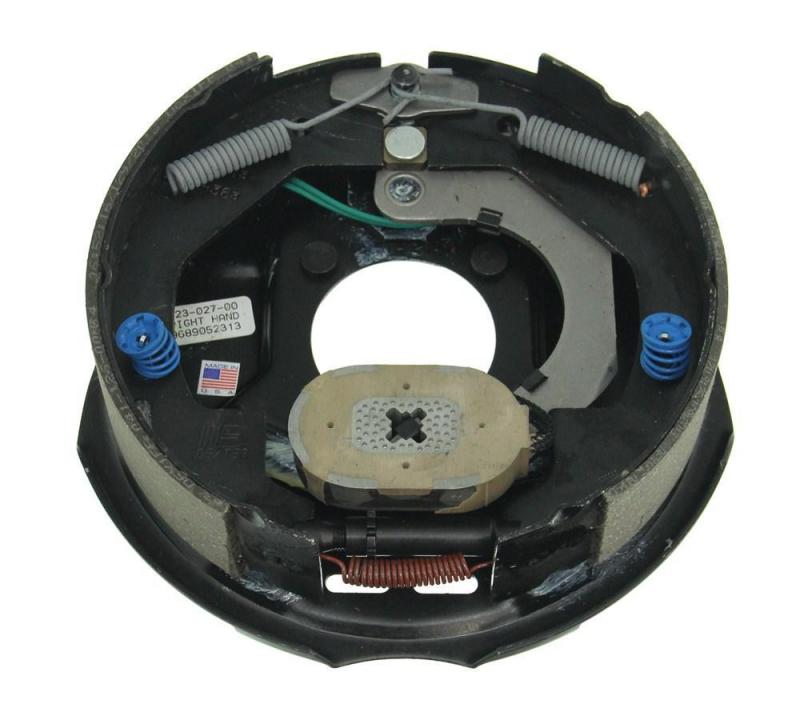

Dexter 12in 6K RH Elec Drum Brake 23-106

Dexter 12in 6K RH Elec Drum Brake 23-106

Price: $72
Add to Cart

Dexter 12" x 2" Right Hand electric complete brake assembly. 6000lb capacity per pair. Mounts with 5 bolts (not included). Uses 12" Hub/Drums. Nuts-38N, bolts-7-5, and washers-38LW sold separately. - Fits standard 6000lb axle with a 5 bolt pattern on the mounting flange. - Right Hand(passenger's side) - Complete assembly ready to bolt on and wire - For use with 12" inside diameter drum - The shoes are 2" wide To determine the size of the brake, you need 2 measurements. The first is the diameter of the brake(D). The second is the width of the shoe(W). It is good to take note of how many mounting bolts the brake has.

Stock #: 23-106
Get a Quote View Details
Dexter 12in 6K LH Elec Drum Brake 23-105

Dexter 12in 6K LH Elec Drum Brake 23-105

Price: $72
Add to Cart

Dexter 12" x 2" Left Hand electric complete brake assembly. Features: 6000lb capacity per pair. Mounts with 5 bolts (not included). Uses 12" Hub/Drums. Nuts-38N, bolts-7-5, and washers-38LW sold separately. - Fits standard 6000lb axle with a 5 bolt pattern on the mounting flange. - Left Hand(driver's side) - Complete assembly ready to bolt on and wire - For use with 12" inside diameter drum - The shoes are 2" wide To determine the size of the brake, you need 2 measurements. The first is the diameter of the brake(D). The second is the width of the shoe(W). It is good to take note of how many mounting bolts the brake has.

Stock #: 23-105
Get a Quote View Details
Dexter 12in 6K LH Elec Nvr-Adj Drum Brake 23-458

Dexter 12in 6K LH Elec Nvr-Adj Drum Brake 23-458

Price: $90
Add to Cart

Dexter 12" x 2" Left Hand electric complete brake assembly. Nev-R-Adjust. 6,000lb capacity per pair. Mounts with 5 bolts (not included). Brakes automatically adjust to deliver optimum performance and braking power. Reduce stopping distances 50 percent more than other brakes. Save time and money. Proper adjustment leads to better brake efficiency. Uses 12" Hub/Drums. Nuts-38N, bolts-7-5, and washers-38LW sold separately. - Fits standard 6,000lb axle with a 5 bolt pattern on the mounting flange. - Left Hand(driver's side) - Complete assembly ready to bolt on and wire - For use with 12" inside diameter drum - The shoes are 2" wide - Nev-R-Adjust(self-adjusting) To determine the size of the brake, you need 2 measurements. The first is the diameter of the brake(D). The second is the width of the shoe(W). It is good to take note of how many mounting bolts the brake has.

Stock #: 23-458
Get a Quote View Details
Dexter 12in 6K RH Elec Nvr-Adj Drum Brake 23-459

Dexter 12in 6K RH Elec Nvr-Adj Drum Brake 23-459

Price: $90
Add to Cart

Dexter 12" x 2" Right Hand electric complete brake assembly. Nev-R-Adjust. 6,000lb capacity per pair. Mounts with 5 bolts (not included). Brakes automatically adjust to deliver optimum performance and braking power. Reduce stopping distances 50 percent more than other brakes. Save time and money. Proper adjustment leads to better brake efficiency. Uses 12" Hub/Drums. Nuts-38N, bolts-7-5, and washers-38LW sold separately. - Fits standard 6,000lb axle with a 5 bolt pattern on the mounting flange - Right Hand(passenger's side) - Complete assembly ready to bolt on and wire - For use with 12" inside diameter drum - The shoes are 2" wide - Nev-R-Adjust(self-adjusting) To determine the size of the brake, you need 2 measurements. The first is the diameter of the brake(D). The second is the width of the shoe(W). It is good to take note of how many mounting bolts the brake has.

Stock #: 23-459
Get a Quote View Details
Dexter 12in 7K LH Elec Drum Brake 23-180

Dexter 12in 7K LH Elec Drum Brake 23-180

Price: $91
Add to Cart

Dexter 12" x 2" Left Hand electric complete brake assembly. 7000lb capacity per pair. Mounts with 5 bolts (not included). Uses 12" Hub/Drums. Nuts-38N, bolts-7-5, and washers-38LW sold separately. - Fits standard 7000lb axle with a 5 bolt pattern on the mounting flange. - Left Hand(driver's side) - Complete assembly ready to bolt on and wire - For use with 12" inside diameter drum - The shoes are 2" wide To determine the size of the brake, you need 2 measurements. The first is the diameter of the brake(D). The second is the width of the shoe(W). It is good to take note of how many mounting bolts the brake has.

Stock #: 23-180
Get a Quote View Details
Dexter 12in 7K RH Elec Drum Brake 23-181

Dexter 12in 7K RH Elec Drum Brake 23-181

Price: $91
Add to Cart

Dexter 12" x 2" Right Hand electric complete brake assembly. 7000lb capacity per pair. Mounts with 5 bolts (not included). Uses 12" Hub/Drums. Nuts-38N, bolts-7-5, and washers-38LW sold separately. - Fits standard 7000lb axle with a 5 bolt pattern on the mounting flange. - Right Hand(passenger's side) - Complete assembly ready to bolt on and wire - For use with 12" inside diameter drum - The shoes are 2" wide To determine the size of the brake, you need 2 measurements. The first is the diameter of the brake(D). The second is the width of the shoe(W). It is good to take note of how many mounting bolts the brake has.

Stock #: 23-181
Get a Quote View Details

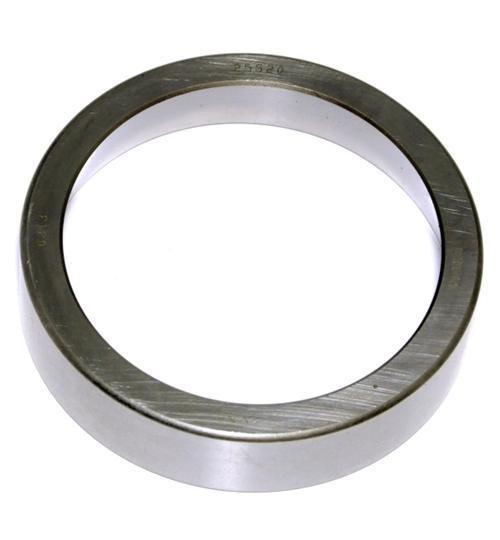

Replacement Race 25520

Replacement Race 25520

Price: $4
Add to Cart

Works with 25580 bearing. Replacement race and bearing numbers are universal. - Outer diameter: 3.265" - Matching bearing 25580 (sold separately) Fits the 8-201-5, 8-213-5, H42655, HD42656, 42865, HD42866, H81745BX, H84305BX, and H82883BX hubs.

Stock #: 25520
Get a Quote View Details

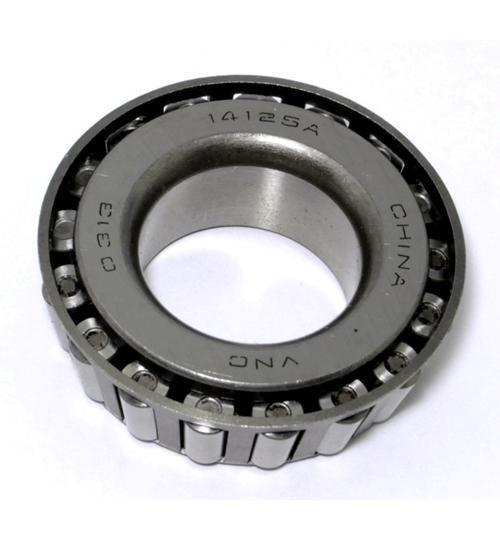

Replacement Bearing 14125A

Replacement Bearing 14125A

Price: $6
Add to Cart

Works with 14276 race.  High-quality, tapered roller bearing is designed for high-speed use. Replacement race and bearing numbers are universal. - Inner diameter: 1.250" - Matching race 14276 (sold separately) This is an outer bearing for 5.2k-7k 8 lug hubs (#42 spindle) 42865, HD42866

Stock #: 14125A
Get a Quote View Details
Replacement Bearing 25580

Replacement Bearing 25580

Price: $7
Add to Cart

Works with 25520 race.  High-quality, tapered roller bearing is designed for high-speed use. Replacement race and bearing numbers are universal. - Inner diameter: 1.750" - Matching race 25520 (sold separately) This is an inner bearing for 5.2k-8k axles with #42 spindles. 8-201-5, 8-213-5, H42655, HD42656, 42865, HD42866, H81745BX This is an outer bearing for Dexter 9-10k general duty axles and #99 spindles. H84305BX, H82883BX Will fit other select applications

Stock #: 25580
Get a Quote View Details
Dexter 5 on 4.5in Standard 6.5in Flange Hub Kit 1in Spindle For 2K Axles - INSTALLATION AVAILABLE

Dexter 5 on 4.5in Standard 6.5in Flange Hub Kit 1in Spindle For 2K Axles - INSTALLATION AVAILABLE

Price: $30
Add to Cart

Dexter Hub W/ 5 on 4.5" Bolt Pattern For 1" Spindles, Fits 2,000lb Axles Dexter hub kits come with some of your main components like the inner and outer bearings. There is no need to worry about the races as they are already pressed into the hub for you. You will also get the grease seal, grease cap, and wheel nuts for the hub. This hub is designed for use with a 1" diameter spindle. Each hub has a capacity of 1,250lbs. Spindle nut and spindle washer sold separately. Works with 13"-15" wheels Items in Kit: 2 L44643 Inner and Outer Bearings (1" ID) 2 L44610 Inner and Outer Races(Already Pressed In) 1.98" OD 1 10-60 Grease Seal (1.5" x 1.987") 1 46749 Grease Cap (1.986" OD) 5 X1023R Coned Wheel Nuts 1 5 on 4.5" Galvanized Hub w/6.5" flange 1,250lb Capacity Per Hub To determine the bolt circle on hubs or wheels with an odd number of bolt holes, measure from outside to center of the studs across the pattern(bolt patterns are always measured in inches). Example: If you were to number the studs 1, 2, 3, then you would measure from the outside of stud 1 to the center of stud 3.

Stock #: 8-258BTUC1
Get a Quote View Details
1750lb Double Eye Spring PR4B - INSTALLATION AVAILABLE

1750lb Double Eye Spring PR4B - INSTALLATION AVAILABLE

Price: $15
Add to Cart

This 1.75" wide 4 leaf spring is designed for 3.5k double eye suspension systems. - Number of leaves: 4 - 1-3/4" wide - 25-1/4" long(from center to center of the eyes) - 9/16" Eye diameter - Nylon bushing - 1750lb capacity - Axle capacity: 3,500lbs 4 leaf double-eye spring. The PR4B is the most popular spring for a 3.5k axle. Flexes to absorb road shock and provide smooth ride. Reduces wear and tear on trailer. Ensures level ride on bumpy and uneven surfaces. Mounts to trailer frame with hangers or a hanger kit (sold separately)

Stock #: PR4B
Get a Quote View Details
2400lb Double Eye Spring PR4 - INSTALLATION AVAILABLE

2400lb Double Eye Spring PR4 - INSTALLATION AVAILABLE

Price: $16
Add to Cart

This 1.75" wide 4 leaf spring is designed for 5,000 pound double eye suspension systems. - Number of leaves: 4 - 1-3/4" wide - 25-1/4" long(from center to center of the eyes) - 9/16" Eye diameter - Nylon bushing - 2400lb capacity - Axle capacity: 4,800lbs 4 leaf double-eye spring. Flexes to absorb road shock and provide smooth ride. Reduces wear and tear on trailer. Ensures level ride on bumpy and uneven surfaces. Mounts to trailer frame with hangers or a hanger kit (sold separately)

Stock #: PR4
Get a Quote View Details
Dexter 8 on 6.5in EZ-Lube Hub & Drum Kit For 6K & 7K Axles 42866UC3-EZ

Dexter 8 on 6.5in EZ-Lube Hub & Drum Kit For 6K & 7K Axles 42866UC3-EZ

Price: $84
Add to Cart

12" x 2" Hub & Drum W/ 8 on 6.5" Bolt Pattern 6,000lb & 7,000lb Axles Dexter strives to provide the best in quality and value. Hub & drum kits come with some of your main components like the inner and outer bearings. The grease seal, grease cap, and wheel nuts are also included. This hub & drum is designed for use with a #42 spindle. Each hub has a 3,500lb capacity. Spindle nut and spindle washer sold separately. Each hub & drum has unique cooling fins to help keep your brakes cool. Proudly made in the USA! Kit Includes: 1 25580 Inner Bearing (1.75" ID) 1 14125A Outer Bearing (1.25" ID) 1 25520 Inner Race (Already Pressed In) 3.265" OD 1 14276 Outer Race (Already Pressed In) 2.717" OD 1 10-36 Grease Seal (2.25" x 3.376") 1 21-43-1 Grease Cap (2.72" OD) 1 85-1 Grease Cap Plug 8 X1023R Coned Wheel Nuts 1 8 on 6.5" Hub & Drum 3,500lb Capacity Per Hub Use with a 12" x 2" brake To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2" center-to-center diameter.

Stock #: 42866UC3-EZ
Get a Quote View Details
Showing1-15 of 34 items
